배터리 상자 및 커버 인서트 몰딩
From rapid prototyping to tooling manufacturing and from injection molding to parts fabrication, we can save your cost and time by providing one stop solution service.
배터리 상자 및 커버 인서트 몰딩
Short Description:
• Suntime has made automotive battery lids and covers over 8 years
• We are ISO9001 certificated manufacturer in mould and molding.
• SPM has made many similar projects for Automotive battery
• Our experience, good quality and lead time helped customers get more profits
견적 받기
당사의 제품 및 서비스에 대해 궁금한 사항이 있으시면 언제든지 메시지를 남겨주세요.
| Appliance and Type | Automotive battery box and lid, plastic insert moulding |
| Part name | Battery Lid |
| Resin | PP |
| No. of cavity | 1 Cavity and 2 cavities |
| Mould Base | S50C |
| Steel of cavity&Core | 738H |
| Tool weight | 950 ~ 1450kg ( 10 sets moulds) |
| Tool size | 450*600*500 ~ 450*800*500 |
| Press Ton | 380 T |
| Mold life | 500000 |
| Injection system | Hot runner of mold master hot tips |
| Cooling system | 25 ℃ |
| Ejection System | Ejector pins |
| Special points | A-3 polish，ultrasonic welding |
| Difficulties | Warpage caused by different wall thickness |
| Lead time | 4~5 weeks |
| Package | Anti-rust Paper and film, little anti-rust oil and plywood box |
| Packing items | Certification of steel, final 2D & 3D tool design, hot runner document, spare parts and electrodes… |
| Shrinkage | |
| Surface finish | Mirror polishing |
| Trade terms | FOB Shenzhen |
| Export to | Australia |
More details

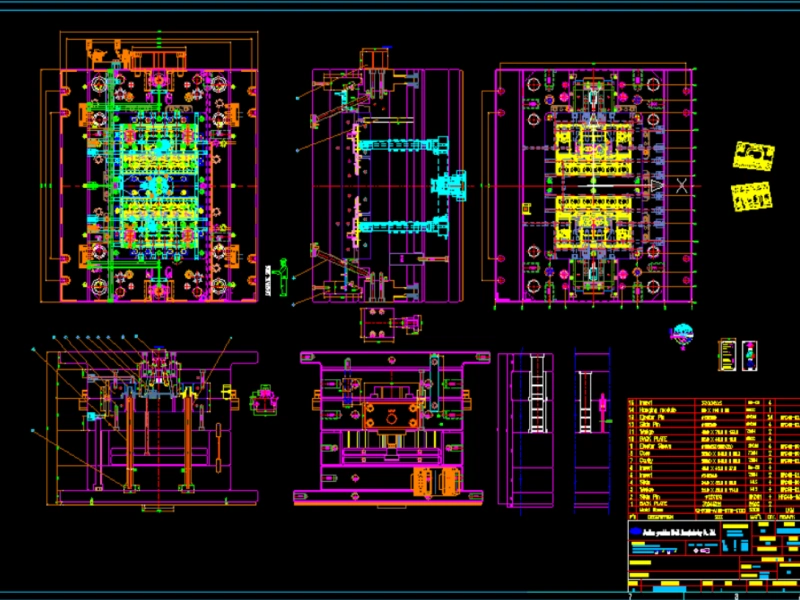

Suntime has very effective mold designers. For DFM, it can be finished within 1~2 days, mold flow / 2D layout within 2~4 days, and 3D within 3~5 days depending on mold complexity.

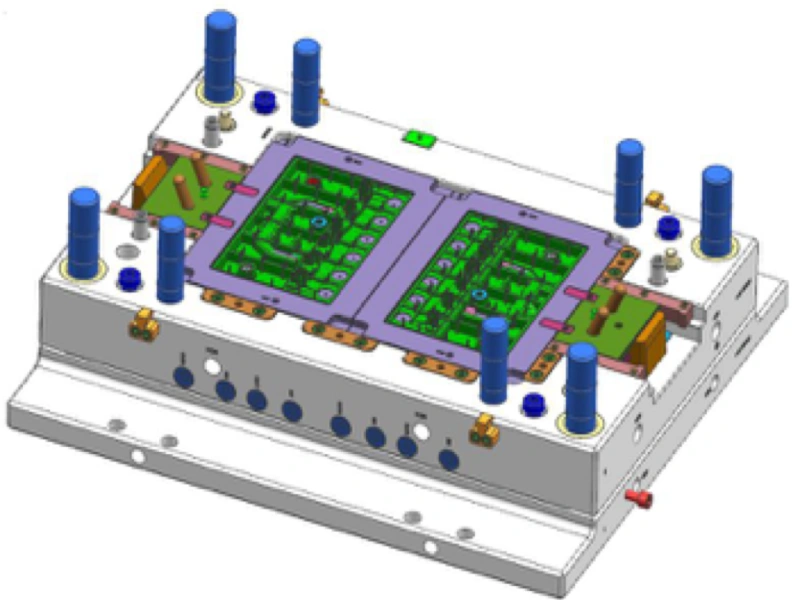

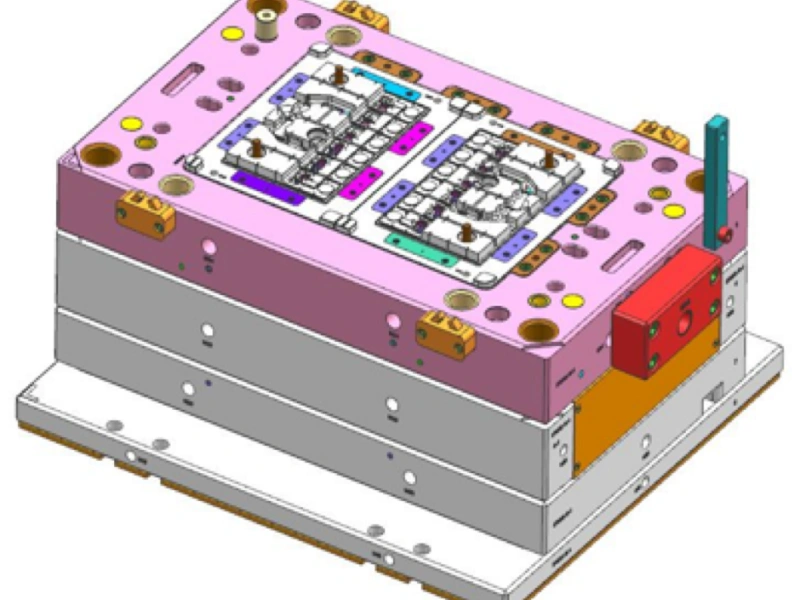

Drawings
Suntime has very effective mold designers. For DFM, it can be finished within 1~2 days, mold flow / 2D layout within 2~4 days, and 3D within 3~5 days depending on mold complexity.
With customers
Customers came to Suntime many times to check the tool making and moulding, and Suntime team has visited them twice in 2016 and 2019 before the Covid to provide technical support. After our customers’ introduction, Suntime team knew more about the the working process of automotive battery production. And we have more knowledge and confidence to do better for them based on our years’ experience.
Video
FAQ
네, 고객님의 모든 디자인과 정보는 기밀로 유지된다는 점을 알고 있습니다. 협력 전에 기밀 유지 계약(NDA)에 서명하는 것은 전혀 문제가 되지 않습니다. 고객님의 동의 없이 제3자에게 정보를 공개하지 않는 한, 저희는 고객님의 정보를 보호할 의무가 있습니다.
Yes, we have much experience of this kind of battery box moulds with different sizes including battery lids, battery box and handles. The end customer is very happy with our quality and lead time.
Normal cold runner & hot runner injection mold,Over mold, insert mold, family mold, multi-cavity mold (32 cavities), 2K mold, Auto unscrewing mold, high temperature mold, MUD mold, Rapid tooling and so on.
저희 영업팀은 서면뿐만 아니라 구두로도 대화가 가능한 유창한 영어 실력을 갖추고 있어 이메일, SNS, 전화, 화상 회의, 방문 등 어떤 방식으로든 저희에게 연락하실 수 있습니다.
저희 엔지니어들은 기술적인 부분에 대한 풍부한 경험을 가지고 있을 뿐만 아니라, 영어를 읽고 쓰고 어느 정도 말할 수 있습니다. 1:1로 직접 소통하실 수 있습니다.
Mold: +_0.01mm, Plastic Part: +_0.02mm and Machining product: +_0.005mm
