电池盒和盖板嵌件成型
From rapid prototyping to tooling manufacturing and from injection molding to parts fabrication, we can save your cost and time by providing one stop solution service.
电池盒和盖板嵌件成型
Short Description:
• Suntime has made automotive battery lids and covers over 8 years
• We are ISO9001 certificated manufacturer in mould and molding.
• SPM has made many similar projects for Automotive battery
• Our experience, good quality and lead time helped customers get more profits
获取报价
如果您对我们的产品和服务有任何疑问，请随时给我们留言
| Appliance and Type | Automotive battery box and lid, plastic insert moulding |
| Part name | Battery Lid |
| Resin | PP |
| No. of cavity | 1 Cavity and 2 cavities |
| Mould Base | S50C |
| Steel of cavity&Core | 738H |
| Tool weight | 950 ~ 1450kg ( 10 sets moulds) |
| Tool size | 450*600*500 ~ 450*800*500 |
| Press Ton | 380 T |
| Mold life | 500000 |
| Injection system | Hot runner of mold master hot tips |
| Cooling system | 25 ℃ |
| Ejection System | Ejector pins |
| Special points | A-3 polish，ultrasonic welding |
| Difficulties | Warpage caused by different wall thickness |
| Lead time | 4~5 weeks |
| Package | Anti-rust Paper and film, little anti-rust oil and plywood box |
| Packing items | Certification of steel, final 2D & 3D tool design, hot runner document, spare parts and electrodes… |
| Shrinkage | |
| Surface finish | Mirror polishing |
| Trade terms | FOB Shenzhen |
| Export to | Australia |
More details

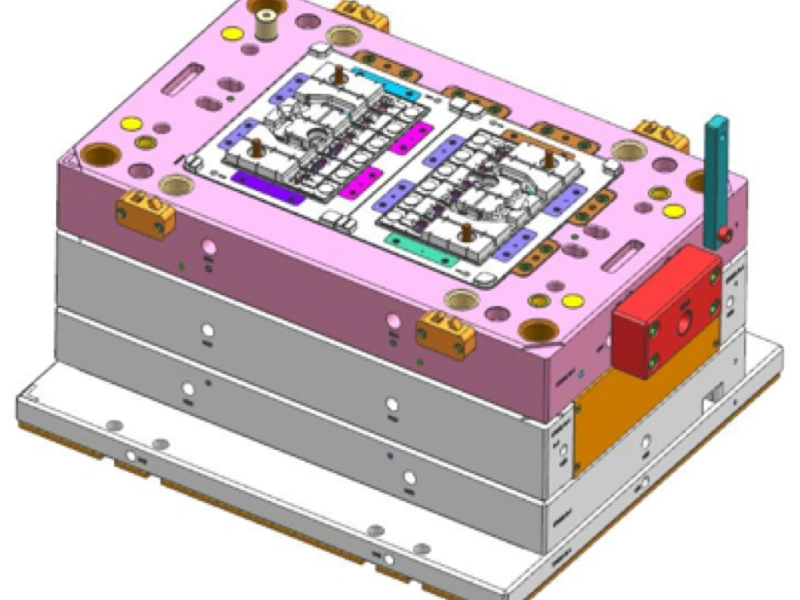

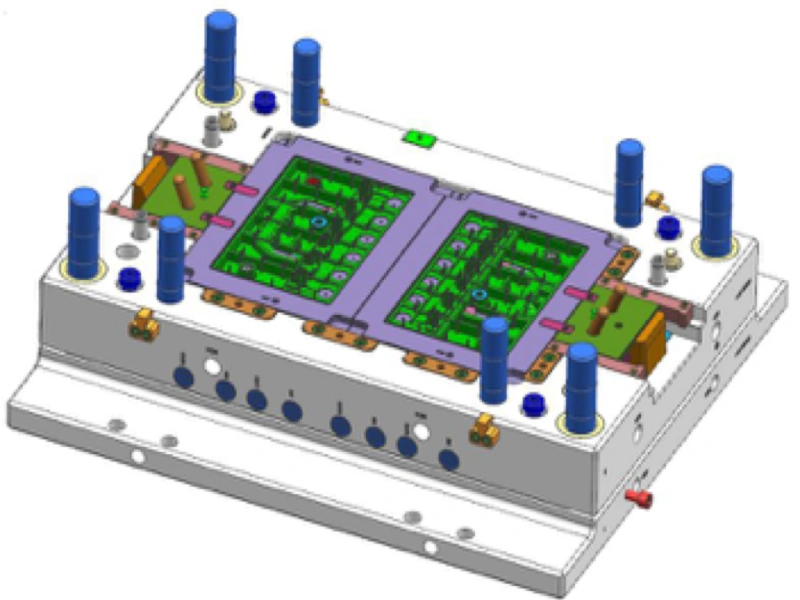

Suntime has very effective mold designers. For DFM, it can be finished within 1~2 days, mold flow / 2D layout within 2~4 days, and 3D within 3~5 days depending on mold complexity.

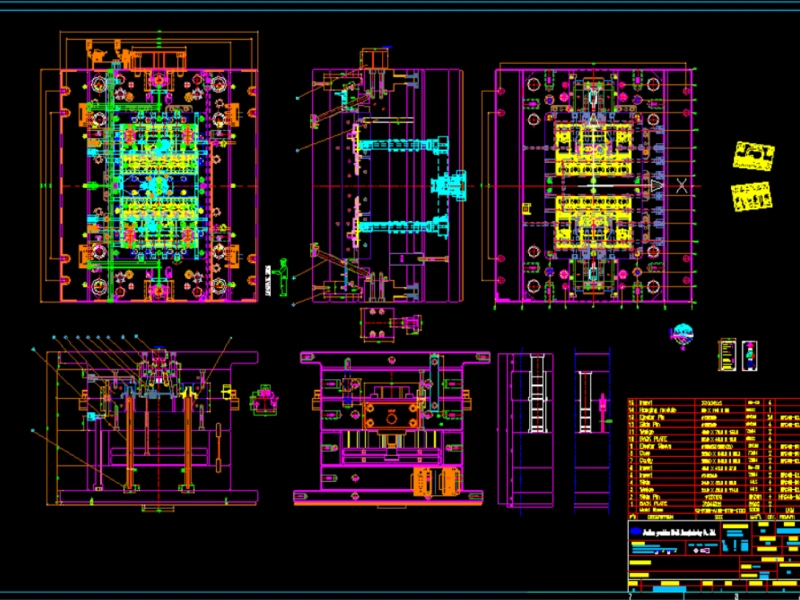

Drawings
Suntime has very effective mold designers. For DFM, it can be finished within 1~2 days, mold flow / 2D layout within 2~4 days, and 3D within 3~5 days depending on mold complexity.
With customers
Customers came to Suntime many times to check the tool making and moulding, and Suntime team has visited them twice in 2016 and 2019 before the Covid to provide technical support. After our customers’ introduction, Suntime team knew more about the the working process of automotive battery production. And we have more knowledge and confidence to do better for them based on our years’ experience.
Video
FAQ
是的，我们理解您的所有设计和信息都是保密的。合作前签署保密协议绝对没问题。我们有义务保护您的信息，除非经您同意告知第三方。
Yes, we have much experience of this kind of battery box moulds with different sizes including battery lids, battery box and handles. The end customer is very happy with our quality and lead time.
Normal cold runner & hot runner injection mold,Over mold, insert mold, family mold, multi-cavity mold (32 cavities), 2K mold, Auto unscrewing mold, high temperature mold, MUD mold, Rapid tooling and so on.
我们的销售人员不仅具备良好的书面英语能力，而且口语能力也很好，您可以通过电子邮件、SNS、电话、视频会议和访问等任何方式与我们联系。
我们的工程师不仅拥有丰富的技术经验，还具备一定的英语读写能力，您可以直接与他们进行一对一的沟通。
Mold: +_0.01mm, Plastic Part: +_0.02mm and Machining product: +_0.005mm
